To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | MDJ-006-HT |
| Description | Circular Connector; 6-position; Receptacle, Female Sockets; Through Hole, Right Angle |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

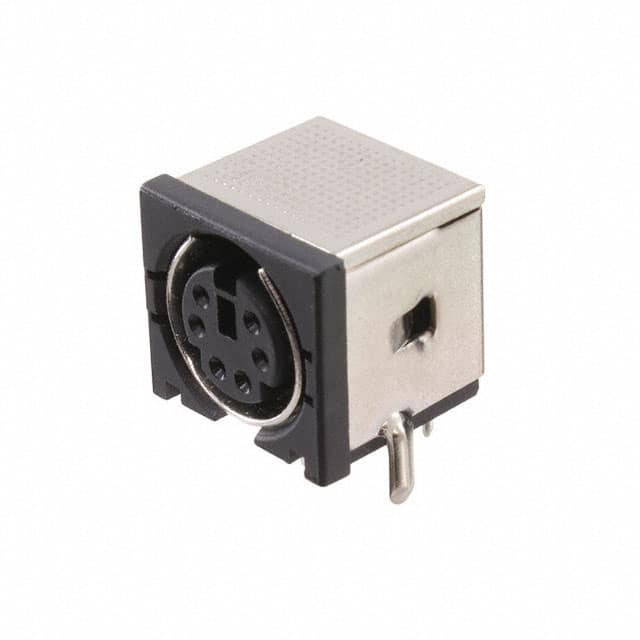

The Adam Tech MDJ-006-HT is a 6-position mini-DIN receptacle with female sockets. Mounting: through hole, right angle. Termination: solder. Unshielded. Body: plastic. Features: Hi-Temp insulator.
Durability: 5,000 mating cycles.
Contacts: copper alloy, gold over nickel underplate on contact area, tin over copper underplate on tails. Insulator: Hi-temp thermoplastic, rated UL 94V-0; color: black.
Current rating: 1 A max./2 A max. Voltage rating: 100 VAC/12 VDC max. Operating temperature -25°C ~ 70°C.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Gender | Receptacle, Female Sockets |
| Number of Positions | 6 |
| Shell Size - Insert | Mini DIN |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Orientation | Keyed |
| Primary Material | Plastic |
| Features | Hi-Temp Insulator |
| Shielding | Unshielded |
| Current Rating (A) | 1 A max./2 A max. |
| Voltage Rating | 100 VAC/12 VDC max. |
| Operating Temperature | -25°C ~ 70°C |
| Insulator Material | Hi-temp thermoplastic, rated UL 94V-0; color: black |
| Contact Material | Copper alloy |
| Plating Detail | Gold over Nickel underplate on contact area, Tin over Copper underplate on tails |
| Mating Cycles | 5000 |
| Approvals | UL Recognized File no. E224053 |
