To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | Adam Tech |
| Manufacturer Product Number | 2BHR-16-HUA-SS |
| Description | Board Connector; 16-position; .079" [2.00mm]; Right Angle; Through Hole; Gold; 1 A max |
| Datasheet | Download Datasheet |
| Catalog | Download Catalog |

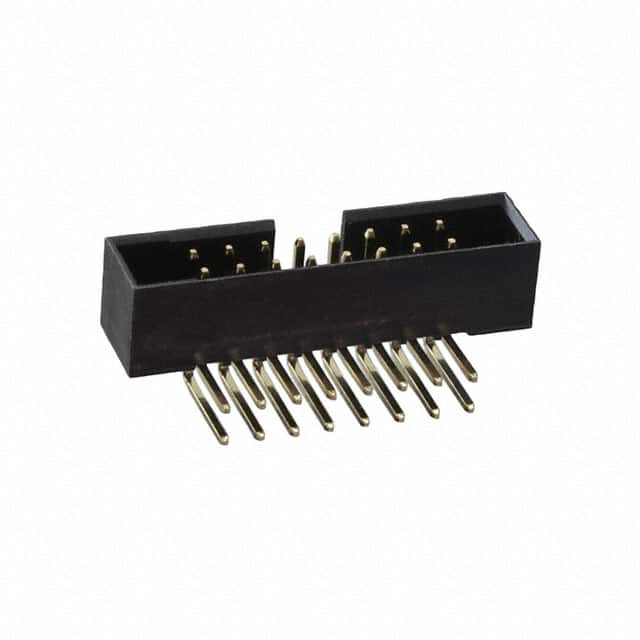

The Adam Tech 2BHR-16-HUA-SS is a 16-position, dual-row, 2 mm (.079 in) pitch shrouded board header with male pins, right angle through-hole to the PCB.
Contacts: brass, gold flash over nickel underplate overall. Insulator: Hi-Temp Thermoplastic, rated UL 94V-0; color: black.
Current rating: 1 A max. Voltage rating: 250V AC max. Operating temperature -40 °C to +105 °C.
Approvals: UL Recognized File no. E224053.
| Category | |
| Manufacturer | Adam Tech |
| Connector Type | Header, shrouded |
| Contact Type | Male Pin |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch | .079" [2.00mm] |
| Orientation | Right Angle |
| Mounting Type | Through Hole |
| Contact Finish | Gold |
| Plating Detail | Gold flash over Nickel underplate overall |
| Contact Material | Brass |
| Insulator Material | Hi-Temp Thermoplastic, rated UL 94V-0; color: black |
| Current Rating | 1 A max |
| Voltage Rating | 250V AC max. |
| Operating Temperature | -40...+105 |
| Approvals | UL Recognized File no. E224053 |
