To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | ATC Diversified |
| Manufacturer Product Number | ATC560S0PX |

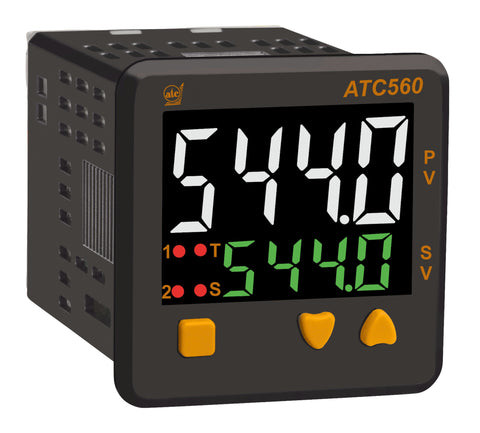

| Description | Temperature Controller; Panel Mount; 90-270V AC/DC; 4+4 digits, 7 segment LED |
| Datasheet | Download Datasheet |
Temperature Controller • Supply Voltage; 90-270V AC/DC • Output 1; Relay/SSR • Output 2; Relay • Display; 4+4 digits, 7 segment LED dual , Height on Upper Display: 15.3mm, Height on Lower Display: 8mm • Mounting ; Panel Mount
| Category | |
| Manufacturer | ATC Diversified |
| Supply Voltage | 90-270V AC/DC |
| Output 1 | Relay/SSR |
| Output 2 | Relay |
| Display | 4+4 digits, 7 segment LED dual , Height on Upper Display: 15.3mm, Height on Lower Display: 8mm |
| Mounting | Panel Mount |
| Inputs | Thermocouple (J, K, T, R, S) / RTD (PT100) |
| Resolution | 0.1 / 1° for TC / RTD inputs (fixed 1° for R & S type TC input) |
| Indication Accuracy | For J, K & T inputs: 0.25% of F.S. ±1° For R & S inputs: 0.55 of F.S. ±2° (20 min of warm up time for TC inputs) For RTD inputs: 0.1% of F.S. ±1° (F.S. = Full Scale) |
| Temperature Unit | °C / °F selectable |
| Input Filter | (FTC) 0.2 to 10.0sec |
| Sampling Time | 250ms |
