To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | ATC Diversified |
| Manufacturer Product Number | 376B-200-R-50-R-X |
| Description | Counter; Dual preset (batch); 240V AC; Relay x 2; Panel Mount |
| Datasheet | Download Datasheet |

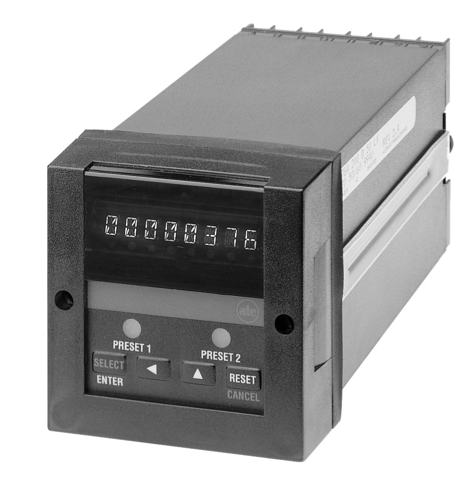

The ATC Diversified 376B-200-R-50-R-X is a dual-preset counter / totalizer for a 240 V AC supply. It counts sensor, contact or quadrature pulses up or down against keypad presets, with a separate totalizer and a prescaler to count in engineering units.
Function: dual preset (batch). Count range: presets 1-999,999; totalizer to 99,999,999. Direction: up or down. Count speed: 10 kHz up, 9 kHz down. Count input: sink or source sensors, contacts, quadrature (X1 / X2 / X4), DIP-switch selected. Prescale: 0.00001-9.99999. Display: 8-digit blue vacuum fluorescent. Memory: non-volatile EEPROM (10-year retention). Preset: front keypad. Supply tolerance: 190-264 V AC; 50/60 Hz. Power: 8 VA max.
Output: Relay x 2, 7 A at 250 V AC or 30 V DC; 1/4 HP. Auxiliary: 12 V DC regulated, 120 mA sensor supply. Mounting: 72 mm DIN (67 mm square cutout) panel mount, plug-in with 16 screw terminals. Life: 100,000,000 operations mechanical. Approvals: cURus Recognized, CE.
| Category | |
| Manufacturer | ATC Diversified |
| Model | 376B |
| Sub-Family | Predetermining with totalizer |
| Counting Function | Dual preset (batch) |
| Count Range | Presets 1-999,999; totalizer to 99,999,999 |
| Number of Presets | 2 |
| Prescale | 0.00001-9.99999 |
| Count Speed | 10 kHz up, 9 kHz down |
| Count Input | Sink or source sensors, contacts, quadrature (X1 / X2 / X4), DIP-switch selected |
| Count Direction | Up or down |
| Display | 8-digit blue vacuum fluorescent |
| Memory | Non-volatile EEPROM (10-year retention) |
| Preset Method | Front keypad |
| Input Voltage | 240V AC |
| Input Operating Range | 190-264 V AC; 50/60 Hz |
| Contact Configuration | Relay x 2 |
| Output Rating | 7 A at 250 V AC or 30 V DC; 1/4 HP |
| Auxiliary Output | 12 V DC regulated, 120 mA sensor supply |
| Status Indicator | Preset LEDs; flash when an output is active |
| Mounting Type | Panel Mount |
| Termination Style | Plug In (16 screw terminals) |
| Panel Cutout | 72 mm DIN (67 mm square cutout) |
| Rated Power | 8 VA max |
| Mechanical Life (cycles) | 100,000,000 |
| Approvals | cURus Recognized, CE |
