To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | ATC Diversified |
| Manufacturer Product Number | 324C-06-A2G-R-1-A-01-X |
| Description | Timer; Cam Programmer; 24 s (28.8 s at 50 Hz); 120V AC; 6 x SPDT |
| Datasheet | Download Datasheet |

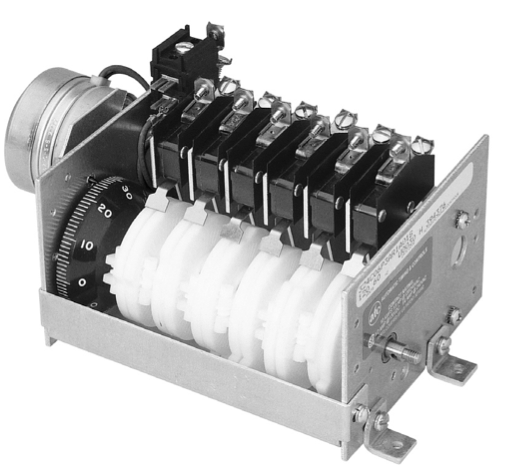

The ATC Diversified 324C-06-A2G-R-1-A-01-X is a cam programmer timer for 120 V AC, with isolated SPDT relay contacts rated 10 A at 120 V AC (non-inductive). It runs a 24 s (28.8 s at 50 Hz) cycle, driven by a 5 rpm synchronous motor, with 6 cam-operated switches each set by its own split cam.
Start: repeat cycle, stop cycle, dynamic brake.
Output: 6 x SPDT relay, 10 A at 120 V AC (non-inductive); 1/3 HP at 125/250 V AC. Repeat accuracy: ±0.25% of cycle time. Setting accuracy: ±0.25% of cycle time. Supply tolerance: 60 Hz. Power: 12 W max. Life: over 10,000,000 operations mechanical.
Approvals: UL Recognized, CSA.
| Category | |
| Manufacturer | ATC Diversified |
| Model | 324C |
