| Manufacturer | ATC Diversified |
| Manufacturer Product Number | TDH-24A-KA0-010 |
| Description | TDR; 0.1...10 s; Knob Adj; Delayed Interval; 24V AC/DC; 8 Pin (Octal); 2C DPDT |
| Datasheet | Download Datasheet |

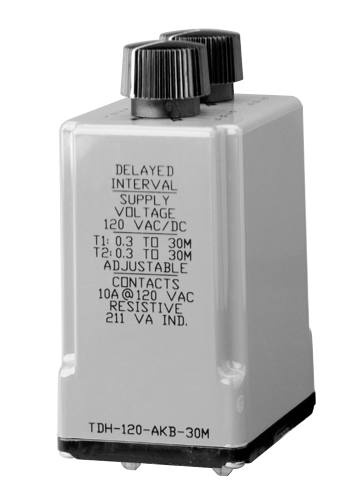

The ATC Diversified TDH-24A-KA0-010 is a delayed interval (delay-on-make, then interval) timer for 24 V AC/DC, with isolated DPDT relay contacts rated 10 A resistive at 250 V AC or 24 V DC. The delay-on-make time (T1) is adjustable from 0.1 to 10 seconds and the interval (T2) from 0.1 to 10 seconds with its onboard knob.
Upon application of supply voltage the OFF delay runs; at its end the relay energizes for the ON (interval) time and then de-energizes until supply voltage is removed and re-applied.
Output: 2C DPDT relay, 10 A resistive at 250 V AC or 24 V DC; 211 VA inductive at 120 V AC. It has no LED indicator. Repeat accuracy: 1% maximum, no first cycle effect. Setting accuracy: Maximum setting ±10%, minimum setting +0%/-20%. Supply tolerance: ±10% of nominal; 50/60 Hz. Power: 3 W. Life: 10,000,000 operations mechanical, 100,000 electrical.
It plugs into an 8 pin octal socket (RB-08 or PF083A). It operates from 0 to +55 °C and stores from -45 to +85 °C. Approvals: UL Recognized (E55826).
| Category | |
| Manufacturer | ATC Diversified |
| Model | TDH |
