To ensure accuracy, please note that images may be representative. Refer to the product data sheet for detailed specifications.
| Manufacturer | ATC Diversified |
| Manufacturer Product Number | CT-25/5 |
| Description | Instrument Transformer; 25:5 A; 2 VA; 6.00%; 600 V insulation; 25-400 Hz |
| Datasheet | Download Datasheet |

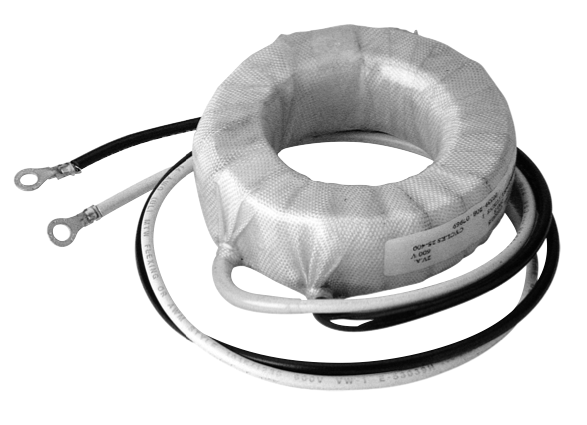

The ATC Diversified CT-25/5 is a 25:5 A current transformer that steps a motor or feeder current down to a 5 A secondary for a current monitor, meter or protection relay.
Window: (group 1); 24 in 14 AWG leads. Burden: 2 VA. Accuracy: 6.00%. Insulation: 600 V insulation; 25-400 Hz. Thermal rating: Do not operate at twice rated current (not above 50:10 A). Mounting: mounting feet; optional mounting bracket (add suffix -B).
| Category | |
| Manufacturer | ATC Diversified |
| Product Type | Current transformer, toroidal inserted-primary type, PVC dipped; 1-1/4 in window (group 1); 24 in 14 AWG leads |
| Current Ratio | 25:5 A |
| Burden (VA) | 2 VA |
| Accuracy | 6.00% |
| Nominal Line Voltage | 600 V insulation; 25-400 Hz |
| Thermal Rating | Do not operate at twice rated current (not above 50:10 A) |
| Mounting Style | Mounting feet; optional mounting bracket (add suffix -B) |
